Mobile Wi-Fi Testing with Mac OS X

Continuing my work with mobile website testing, here are the steps to create a local Wi-Fi network from a Mac laptop. Just like we showed Windows 7 Wi-Fi sharing, this allows mobile phones and tablets to connect through the laptop for either a proxy configuration (like Charles), or passive monitoring (like tcpdump or Wireshark).

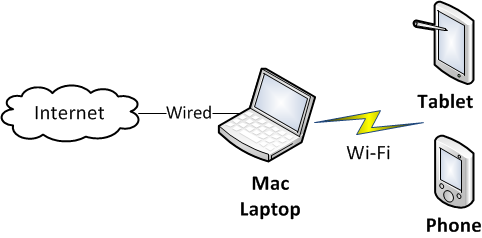

The test setup I’m using has the laptop connected through a wired network cable, and using the laptop’s Wi-Fi as a local access point or hotspot:

Mac Wireless Test Setup

Mac Wireless Test Setup

Not surprisingly, doing this on a Mac is easier than Windows 7. Here are the steps to create a shared Wi-Fi connection:

  1. Connect the laptop to a wired Ethernet connection. Go to System Preferences ⇒ Network ⇒ Wi-Fi; make sure Wi-Fi is on, and disconnect from any wireless networks. Confirm that the internet connection is working in this wired configuration.
  2. Go to the Sharing settings (click Show All ⇒ Sharing.
  3. Click to highlight Internet Sharing on the left (but don’t click the check box yet).
  4. Ensure “Share your connection from” is set to Ethernet, and “to computers using” is set to Wi-Fi.
  5. Click Wi-Fi options, give it a network name, enable encryption and enter a password (I usually use WEP here but you could pick one of the more robust options)
  6. Click the check mark for Internet Sharing, and choose Start at the confirmation dialog.
  7. Your Wi-Fi symbol in the Apple menu bar should now have a gray background with a white arrow pointing up.
  8. Now you should be able to connect to your local network using a mobile phone or tablet, using the network name you used above.

When you are done testing, make sure to turn off the shared Wi-Fi network by unchecking Internet Sharing.
